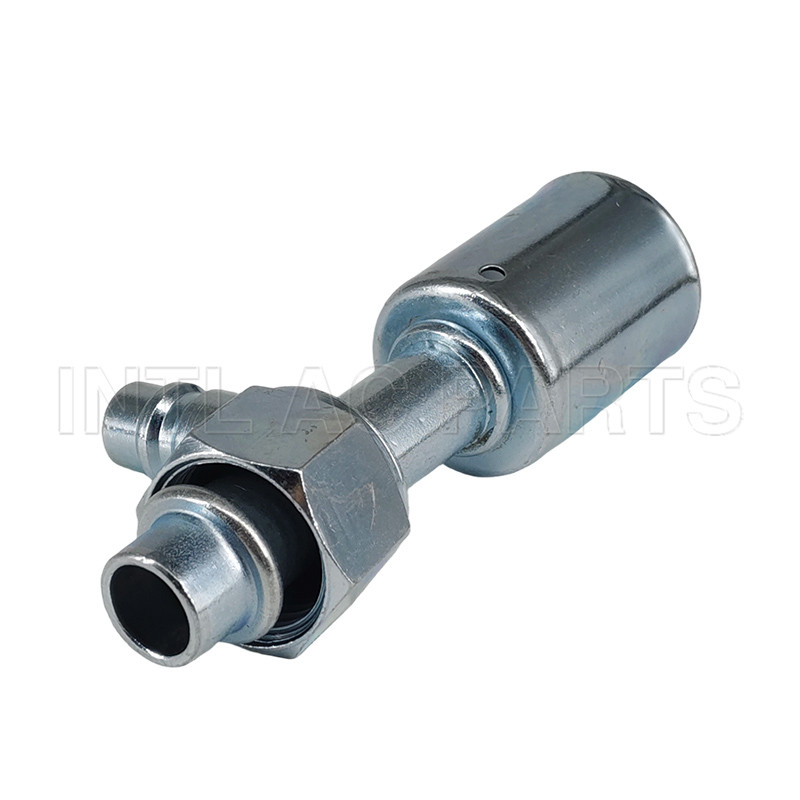

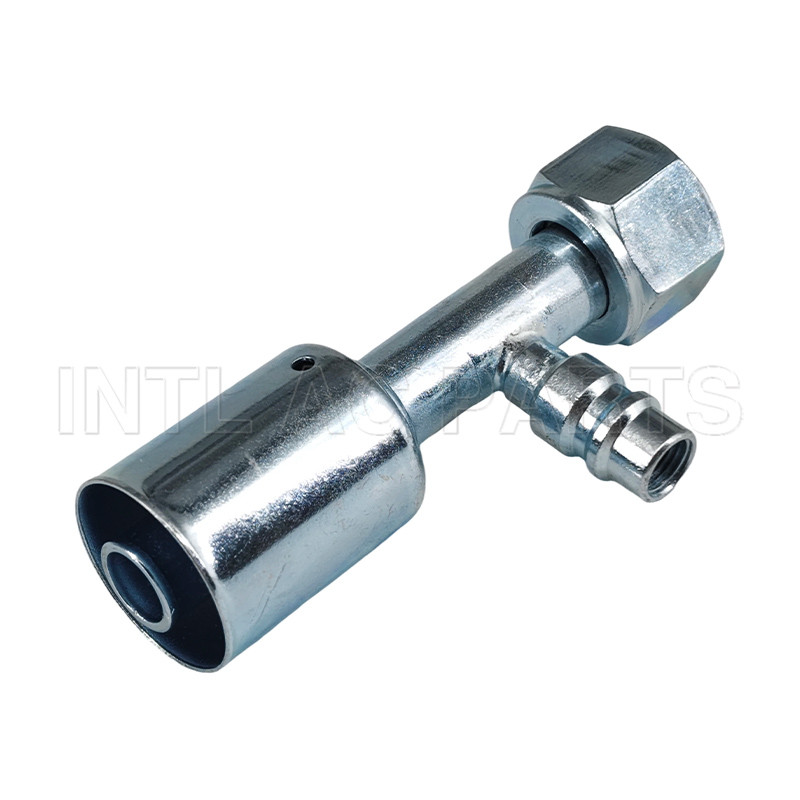

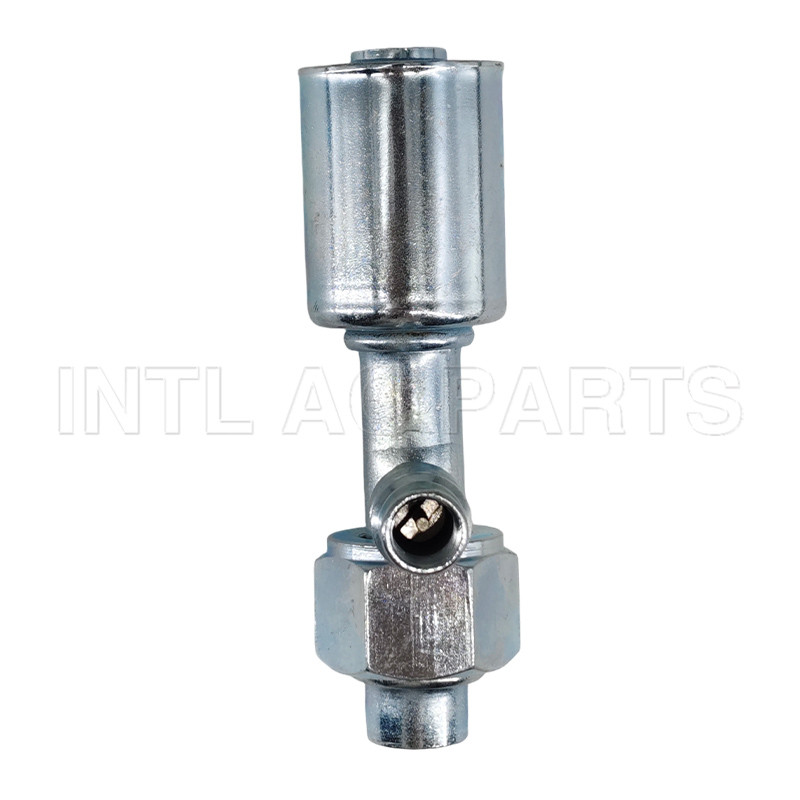

#10 Straight O-RING Iron joint with iron jacket R134a high & low pressure valve auto air conditioning hose fitting

Share
Categories	Hose Fitting
Brand	INTL Auto Air Conditioning Compressor
Model	INTL-HF3310
Item Type	Air-conditioning Installation
Quality	high
condition	toally new
place of orign	china guangdong
Size	#10
Type	Straight O-RING
Update Time	Mar 17,2026

Contact Now

Favorites

Detail Information

PRODUCT PROFILE

Specifications:

Item Number	INTL-HF3310
Size	#10
Type	Straight O-RING
Warranty	1Year

auto air conditioning female Oring hose fitting /connector/coupling with full Iron joint iron Jacket R12 Valve

Jacket A
Type	Rear Bore Diameter (MM)	Inner Bore Diameter(MM)
A1:#6-5/16	8.2±0.3	15.2±0.4
A2:#8-13/32	11.4±0.4	18.4±0.4
A3:#10-1/2	13±0.4	21±0.5
A4:#12-5/8	15.2±0.4	23±0.5

Jacket B
Type	Rear Bore Diameter (MM)	Inner Bore Diameter(MM)
B1:#6-5/16	8.2±0.4	19±0.5
B2:#8-13/32	10.5±0.4	23±0.5
B3:#10-1/2A	13±0.5	23±0.8
B4:#10-1/2B	13±0.5	25.4±0.8
B5:#12-5/8	16.1±0.5	28.6±0.8
