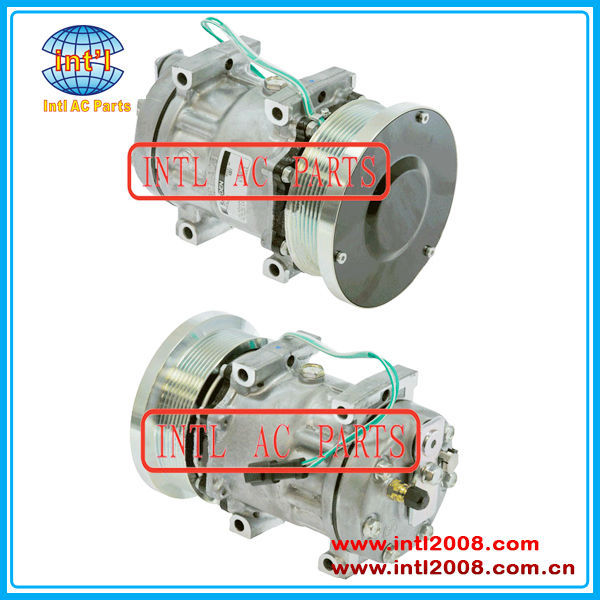

SANDEN 7H15 709 sd709 SD7H15 163-0872 1630872 4769 U4301 4301 U4769 air conditioner ac compressor for Trator Case

Our factory can produce many kinds of auto Air Conditioner Compressors with good quality and one year quality warrantee.

SANDEN 7H15 for Trator for Caterpillar/Case 8pk kompressor

Specification:

Model number: INTL-C139

Car name: for Caterpillar/Case

Compressor Type: SANDEN 7H15

Clutch DIA: 133mm

Pulley:8PK

Volt: 24V

Special Notes:

OEM#

163-0872

1630872

Sanden:

4769

U4301

4301

U4769

Details

Basic Requirements when servicing an A/C system:

1, The Accumulator or Filter Drier should always be replaced when the Air Conditioning System is opened. For warranty Purposes buyer must show evidence of receiver/drier replacement. In some vehicles the drier comes attached to the condenser so it must replaced as well

2. A/C system must be clean and free of debris and contaminants. In most cases components can be flushed; however in some instances it may be necessary to replace the condenser or other items.

3. Orifice tube must be replaced; expansion valve must be inspected and replaced if dirty or defective.

4. Correct amount and type of oil must be used. Please refer to the OE manufacturer for this information.

5. Prior to refrigerant charging, full vacuum must be done for a minimum of 45 minutes. In humid climates or during cooler days, this time should be increased to effectively remove air and boil off moisture.

6. The Orifice Tube, if equipped, should always be replaced and the Expansion Valve, if equipped, should at least be inspected for proper operation if not replaced
