New China BLUE Auto air conditioner orifice tube/Throttle valve/T-top auto A/C orifice tube

Categories

New China BLUE Auto air conditioner orifice tube/Throttle valve/T-top auto A/C orifice tube

New China BLUE Auto air conditioner orifice tube/Throttle valve/T-top auto A/C orifice tube
CategoriesOther
BrandINTL Auto Air Conditioning Compressor
ModelINTL-J020
Size15*10*10cm
TypeOther
Car MakeUniversal
Goods nameAuto air conditioner orifice tube
Update TimeMar 29,2024
Detail Information

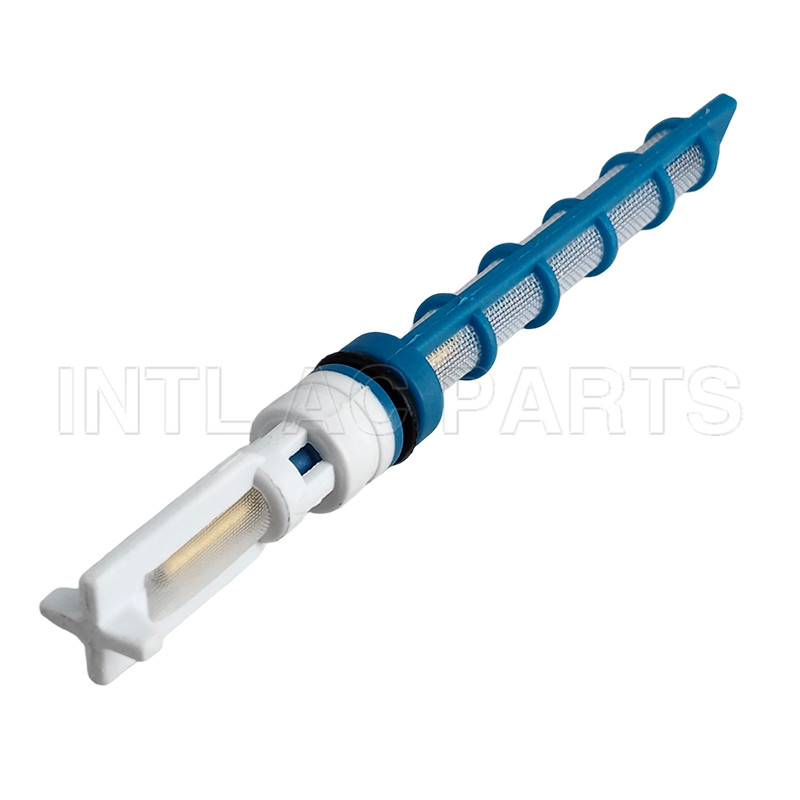

Auto air conditioner orifice tube
Auto orifice tube
A/C Orifice Tube
Throttle valve different colors

T-top auto air conditioner orifice tube



BLUE Color Auto a/c orifice tube/ Throttle valve



Specifications:

Model Number: INTL-J020

For auto a/c conditioning





Toyota air conditioner orifice tube /Throttle valve for honda, mazda , hyundai, chrysler, GMC, Mitsubishi, Ford, Isuzu, Suzuki , Audi, BMW,Kia, Fiat, Dodge,Nissan, Volvo, Daewoo.....





New China BLUE Auto air conditioner orifice tube/Throttle valve/T-top auto A/C orifice tube





Orifice Tubes Functions:



1) Orifice tubes are used in systems that don’t use expansion valves. Like an expansion valve, the orifice tube is used to control the amount of refrigerant entering the evaporator.



2) An orifice tube is a simple fixed device with no moving parts. It cannot vary the amount of refrigerant flowing into the evaporator the way an expansion valve can. So in systems that use orifice tubes, some additional method of refrigerant flow control must be employed.



3) Two of the most popular methods used to do this are turning the compressor on and off at appropriate times, or cycling it, or installing a valve inside the compressor that can actually cause an adjustment to the pumping capacity of the compressor.



4) Orifice tubes also serve as a dividing line between the high and low pressure sections of the system.

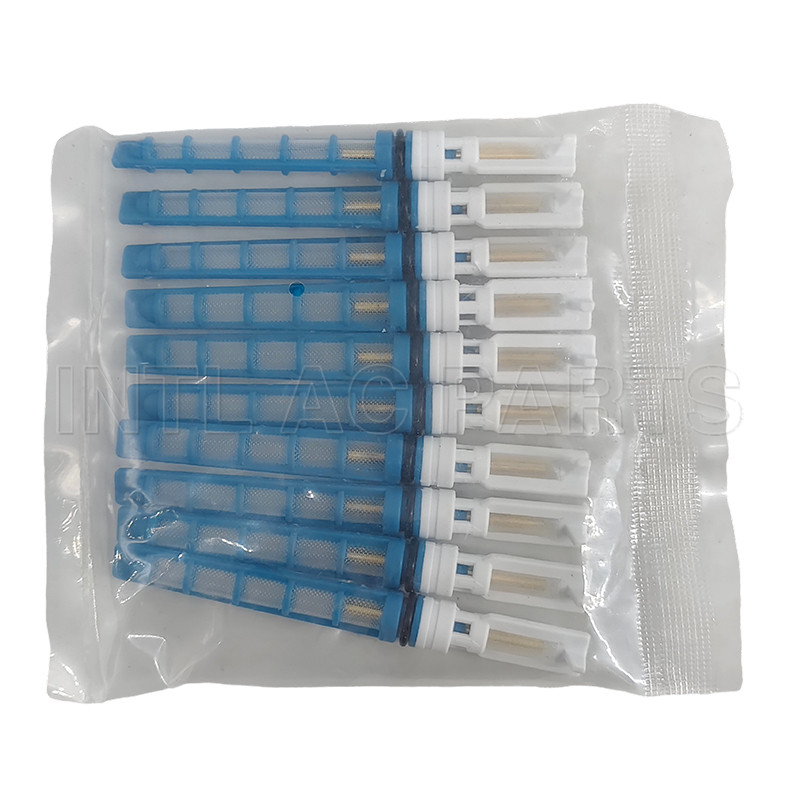

We have Orifice Tubes/ Throttle valveof different colors.

Please let us know which color you like ?
